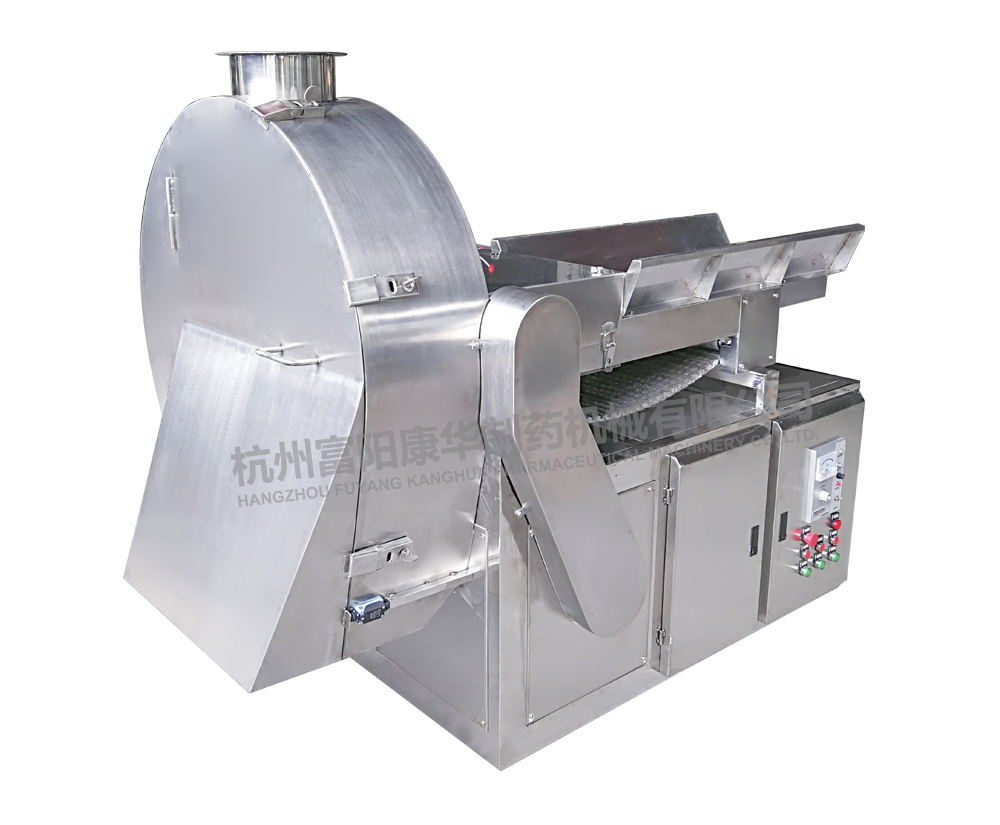

JD high-efficiency cropping machine/guillotine shear

JD high-efficiency cropping machine/guillotine shear





Product Video


Detail



Main uses:

This machine is used in cutting roots, stems, leaves, seedcases of Chinese herbal medicines for extraction and crush.

Features:

High efficiency, high speed, and continuous processing. It can meet the requirement of customers on mass productioon in short time. It meets the requirement of GMP.

Main technical parameters:



Model



Capacity (kg/h)

Length of sections (mm)

Size of inlet hopper (mm)

Rotation of blade disc (r/min)

Power (kw)

Dimension (mm)

Ways of speed regulation

Weight (kg)

1-blade knife

2-blade knife

JD-200

200-400

4-50

2-30

200×60

310

6

1530×950×1335

Electromagnetic speed regulation

550

JD-300

400-1200

4-50

2-30

300×60

310

11

1570×1120×1540

600
